DevPod on AWS	2025-02-11T20:00:00+02:00	1	type docs

Sources

• DevPod ⚙️
• DevContainer 🐳

Introduction 🚀

In this article, I want to introduce a fantastic tool that belongs to the same family as GitPod and Codespaces: DevPod! It lets you create development environments effortlessly — without getting locked in to a single provider. 🔒❌

DevPod is based on the DevContainer architecture and uses the specifications contained in a devcontainer.json file to launch your development environment. Personally, I use it to quickly deploy network mockups with ContainerLab. 💻🧰

What is a DevContainer? 🤔

A development container (often called a "dev container") lets you use a container as a full-fledged development environment. (Check out the official containers.dev documentation for more details.)

Let's break it down:

Have you ever heard the phrase "It works on my machine"? If you're a developer, you've probably run into this problem when collaborating with others. But guess what? DevContainers solve the problem of environment drift by providing consistent, reproducible Docker environments. Say goodbye to installation headaches! 💆‍♀️

With DevContainers, all you need is:

1. A .devcontainer folder in your project.
2. A devcontainer.json file that tells VS Code how to configure the container.
3. Docker installed locally

The cornerstone of the DevContainer is the devcontainer.json file. For example:

{
  "name": "Python DevContainer",
  "image": "mcr.microsoft.com/devcontainers/python:3.10",
  "features": {
    "docker-in-docker": "latest"
  },
  "extensions": [
    "ms-python.python",
    "ms-azuretools.vscode-docker"
  ]
}

What's happening here? 🕵️‍♀️

• "image" – This uses a ready-to-use Python 3.10 environment.
• "features" – This adds Docker support inside the container.
• "extensions" – Installs useful extensions for Python and Docker in VS Code.

DevContainers are great for local development, but sometimes you need more power — maybe your workloads are huge, or you want to run specialized labs. That's where DevPod comes in. 💪
So you can easily deploy labs to the Cloud

What is DevPod? 🤖

DevPod is an open-source tool that lets you launch development environments either on your local machine or in the cloud provider of your choice. Think of it as a self-hosted, highly customizable version of GitHub Codespaces. 🎉

In my day-to-day networking adventures, I deploy ContainerLab-based setups with DevContainers on AWS. Let's see how you can use DevPod to do exactly that (details on ContainerLab will follow in another article, I promise!). 😜

AWS Provider 🌐

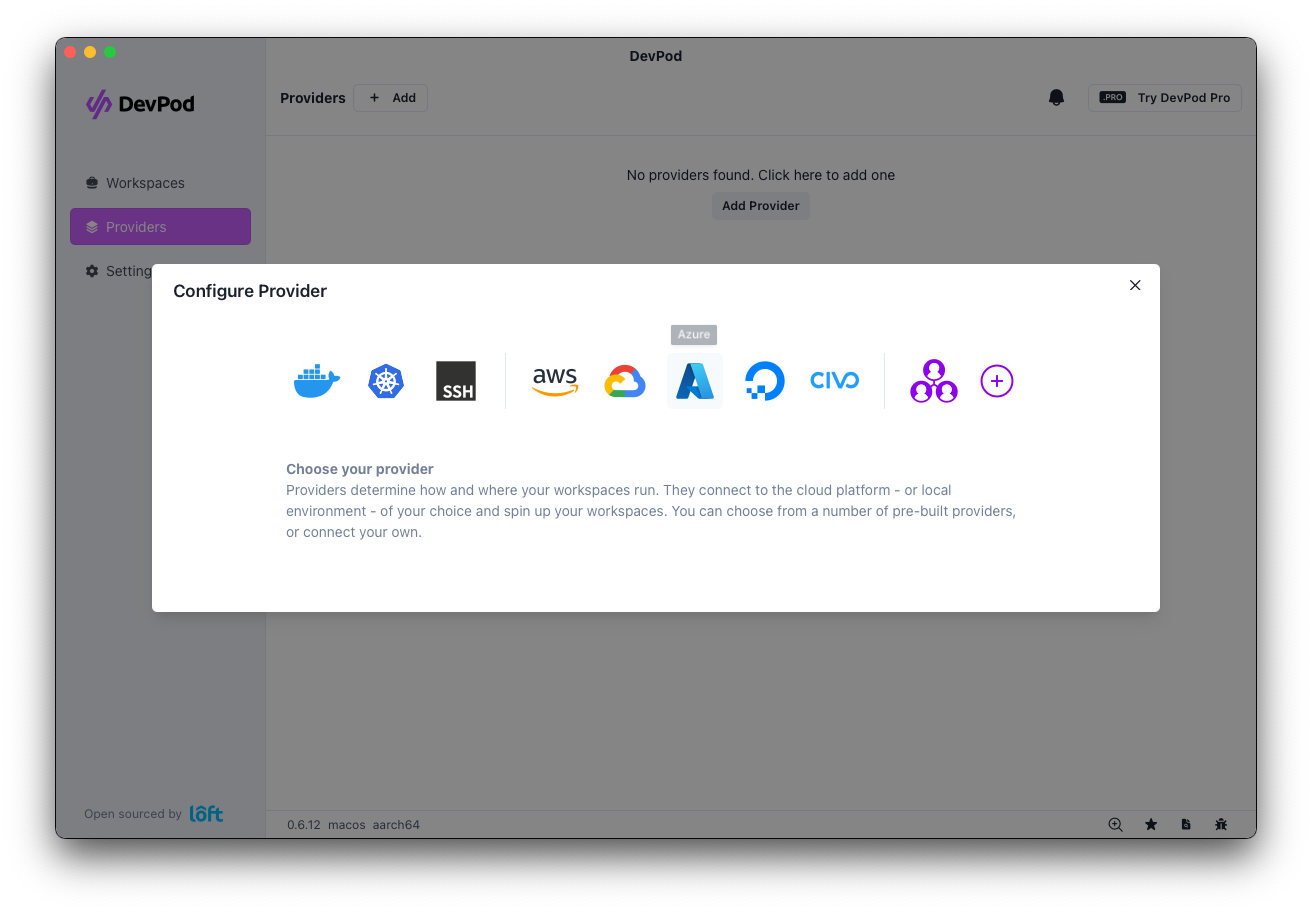

DevPod uses Providers, which are configuration modules that define where and how DevPod launches your environment. Here's the list of providers:

We're going to focus on the AWS Provider — even though there are plenty of configuration options:

Before you panic at all these settings, don't worry. If you're just doing a bit of experimenting, the default values will usually do the job. 🙌

[!NOTE] The perks of open source 🎁

The fact that DevPod is open-source means you can peek under the hood to see exactly how it works. Check out the AWS code here if you're curious.

How the AWS code works

Let's look at what DevPod does on AWS by examining the aws.go code. At a high level, it handles:

1. Initialization: Reading the configuration and setting up the AWS SDK clients (with custom credentials if needed).
2. Networking: Finding or creating the appropriate subnet, VPC, and security groups.
3. AMI selection: Choosing a suitable AMI (by default, a recent Ubuntu 22.04 image) and determining the root device.
4. IAM setup: Verifying that an appropriate instance role and instance profile exist, along with the associated policies.
5. Instance lifecycle: Creating, starting, stopping, checking the status of, and deleting instances.
6. User data injection: Generating a script (Base64-encoded) that configures the instance (adds users and SSH keys) on first boot.
7. Optional DNS: Managing Route 53 records for the instance if the configuration requires it.

From my perspective, two points stand out as potentially the most critical:

• (#4) IAM setup
• (#6) User data injection

Why are points #4 and #6 "tricky"?

• IAM setup is mainly handled by the CreateDevpodInstanceProfile function. It creates a role named devpod-ec2-role that can perform the following operations:

  • EC2 operations: For example, it can describe or stop instances — in particular, the instance associated with it.
  • SSM operations: By attaching the AmazonSSMManagedInstanceCore policy, the instance can be managed by AWS Systems Manager.
  • KMS operations (optional): If configured, it can run kms:Decrypt on a specific KMS key, which is useful for managing session data or secrets.

• User data injection is essentially a startup script inserted into the instance as Base64. This script sets up a devpod user with sudo rights, creates the SSH folders, and inserts your public key into the appropriate file. In the code, it looks like this:

  useradd devpod -d /home/devpod
  mkdir -p /home/devpod
  if grep -q sudo /etc/groups; then
    usermod -aG sudo devpod
  elif grep -q wheel /etc/groups; then
    usermod -aG wheel devpod
  fi

  echo "devpod ALL=(ALL) NOPASSWD:ALL" > /etc/sudoers.d/91-devpod
  mkdir -p /home/devpod/.ssh
  echo " + string(publicKey) + " >> /home/devpod/.ssh/authorized_keys
  chmod 0700 /home/devpod/.ssh
  chmod 0600 /home/devpod/.ssh/authorized_keys
  chown -R devpod:devpod /home/devpod


Since DevPod is open-source, you can easily check it out for yourself. It's a great learning tool if you want to understand all the inner workings! 🔩

IAM roles and policies

You'll need to create an IAM user and attach an IAM policy to it that grants just enough permissions for DevPod. For example:

• EC2 actions:
  • Description: ec2:DescribeSubnets, ec2:DescribeVpcs, ec2:DescribeImages, ec2:DescribeInstances, ec2:DescribeSecurityGroups
  • Instance management: ec2:RunInstances, ec2:StartInstances, ec2:StopInstances, ec2:TerminateInstances, ec2:CancelSpotInstanceRequests
  • Security groups & tags: ec2:CreateSecurityGroup, ec2:AuthorizeSecurityGroupIngress, ec2:CreateTags
• IAM actions:
  • iam:GetInstanceProfile, iam:CreateRole, iam:PutRolePolicy, iam:AttachRolePolicy, iam:CreateInstanceProfile, iam:AddRoleToInstanceProfile
• Route 53 (optional):
  • route53:ListHostedZones, route53:GetHostedZone, route53:ChangeResourceRecordSets

AWS Configuration 🏗️

I usually use the AWS web console to set this up, but you can absolutely do it via the CLI too.

Step 1: Log in to the AWS console

1. Go to the AWS Management Console.
2. Use an account with the appropriate rights to create IAM resources.

Step 2: Create a custom IAM policy

A. Go to the IAM console

• In the AWS menu, find IAM.

B. Create a new policy

1. Click Policies in the left-hand menu.
2. Click Create policy.

C. Switch to the JSON tab

• Paste something like this, adjusting as needed:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "EC2Actions",
      "Effect": "Allow",
      "Action": [
        "ec2:DescribeSubnets",
        "ec2:DescribeVpcs",
        "ec2:DescribeImages",
        "ec2:DescribeInstances",
        "ec2:DescribeSecurityGroups",
        "ec2:RunInstances",
        "ec2:StartInstances",
        "ec2:StopInstances",
        "ec2:TerminateInstances",
        "ec2:CancelSpotInstanceRequests",
        "ec2:CreateSecurityGroup",
        "ec2:AuthorizeSecurityGroupIngress",
        "ec2:CreateTags",
        "ec2:DeleteTags"
      ],
      "Resource": "*"
    },
    {
      "Sid": "IAMActions",
      "Effect": "Allow",
      "Action": [
        "iam:GetInstanceProfile",
        "iam:CreateRole",
        "iam:PutRolePolicy",
        "iam:AttachRolePolicy",
        "iam:CreateInstanceProfile",
        "iam:AddRoleToInstanceProfile"
      ],
      "Resource": "*"
    },
    {
      "Sid": "Route53Actions",
      "Effect": "Allow",
      "Action": [
        "route53:ListHostedZones",
        "route53:GetHostedZone",
        "route53:ChangeResourceRecordSets"
      ],
      "Resource": "*"
    }
  ]
}

• Click Next (tags are optional), then Next: Review.

D. Review and create

1. Name it DevpodToolPolicy (or whatever you prefer).
2. Add an optional description.
3. Click Create policy.

Step 3: Create or update the IAM user

A. Create a new user (if needed)

1. Click Users in IAM.
2. Click Add user.
3. Give it a name (e.g., devpod-tool-user).
4. Choose Programmatic access if you want CLI access. 🤖
5. Click Next.

B. Attach your new policy

1. On the permissions page, choose Attach policies directly.
2. Check DevpodToolPolicy.
3. Click Create.
4. And there you go!

Step 4: Verify and you're done

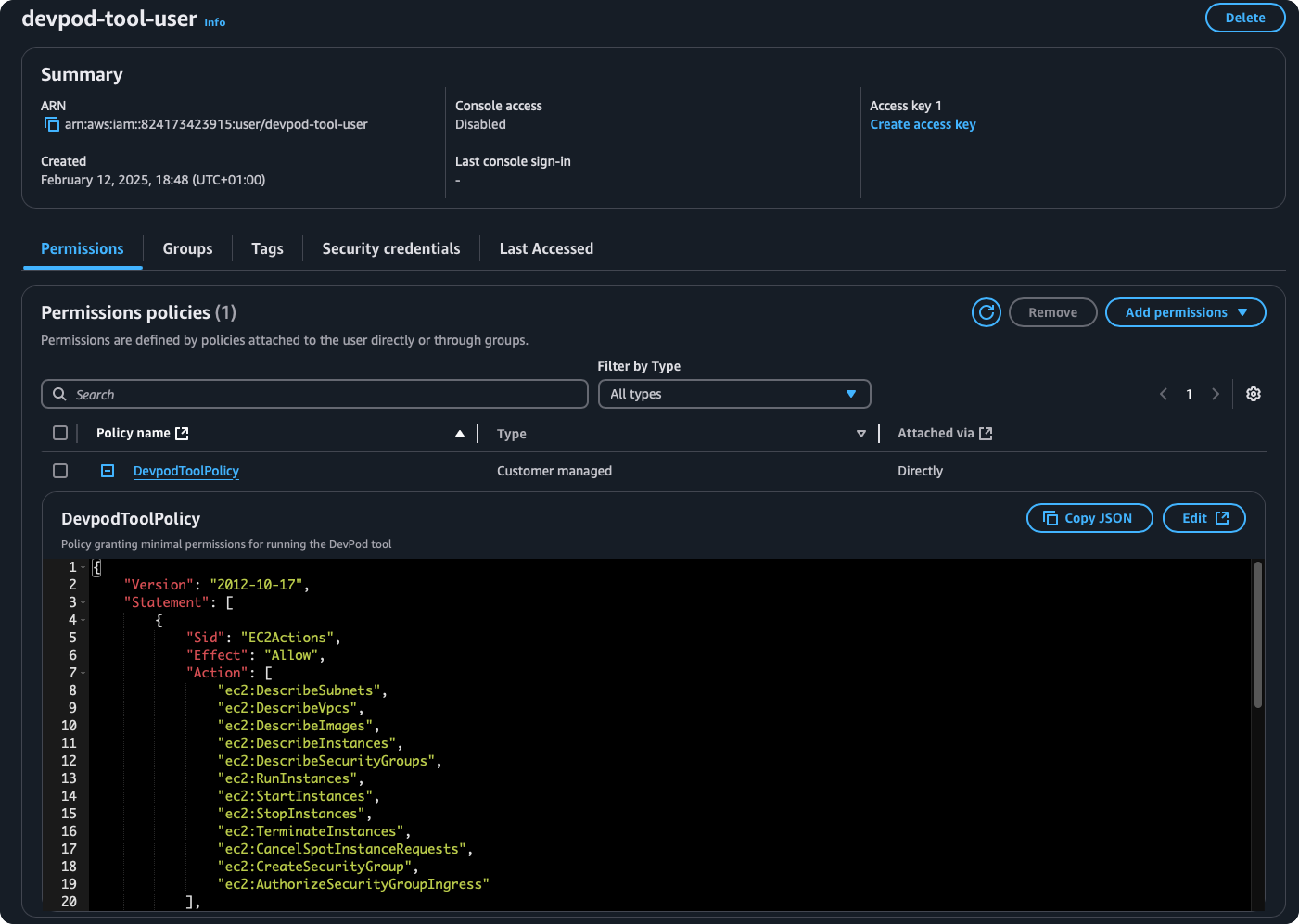

Go back to Users → devpod-tool-user → Permissions to confirm that DevpodToolPolicy is indeed attached. ✅

Step 5: Use these credentials

• If you created a programmatic user, make sure to note down the Access Key ID and the Secret Access Key.

Bonus: Note your VPC ID (in the VPC section on AWS). You'll need it when configuring DevPod.

Configuring DevPod 🛠️

1. Configure the AWS profile

aws configure --profile Devpod

When prompted for:

1. The Access Key ID
2. The Secret Access Key
3. The default region (e.g., eu-west-1)
4. The output format (I usually leave it blank)

2. Add the profile to DevPod

1. In DevPod, create a new provider and choose AWS.
2. Select the AWS region (e.g., eu-west-1).

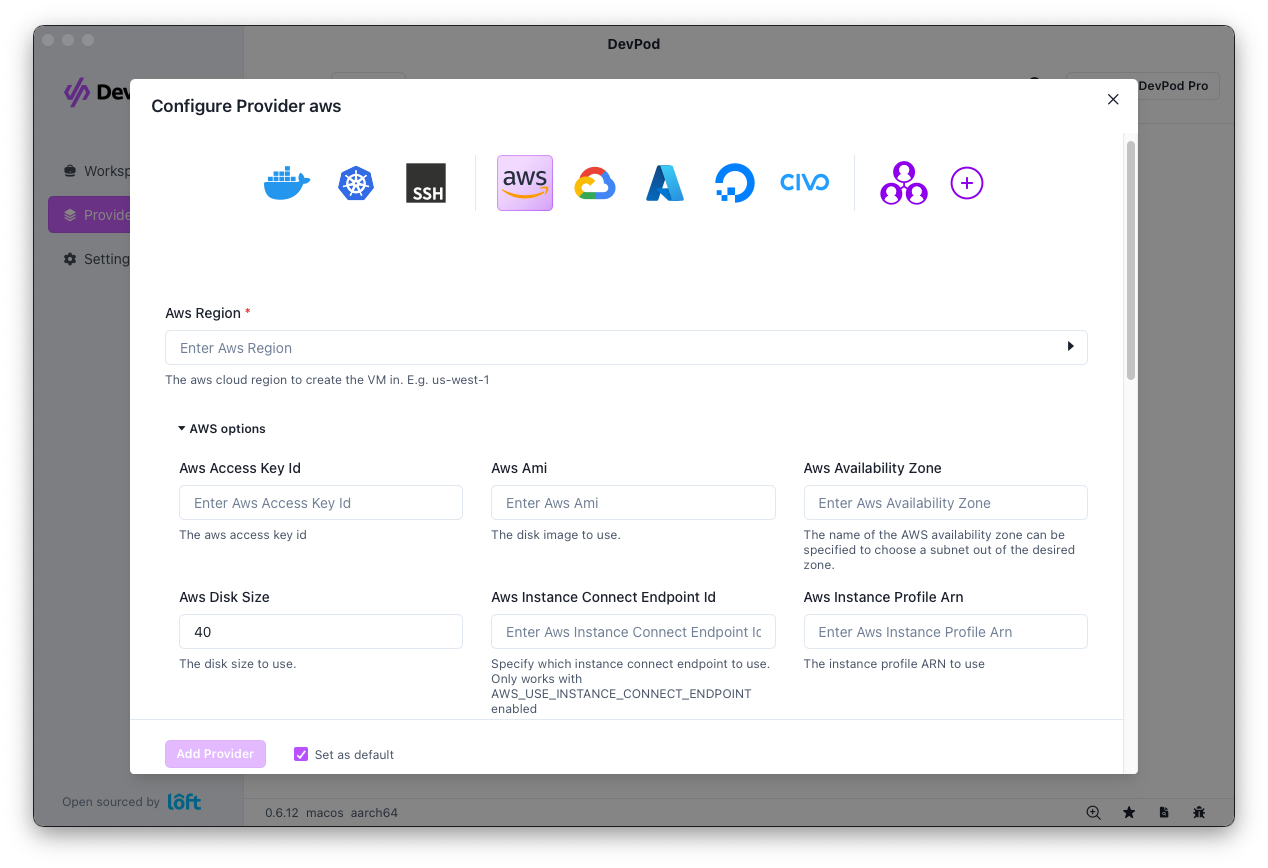

3. Expand the AWS options.
4. AWS disk size: e.g., 40 GB to start.
5. Instance type: e.g., t2.small.
6. AWS profile: select Devpod (or whatever name you chose).
7. AWS VPC ID: add your VPC.
8. You can leave the rest as default.

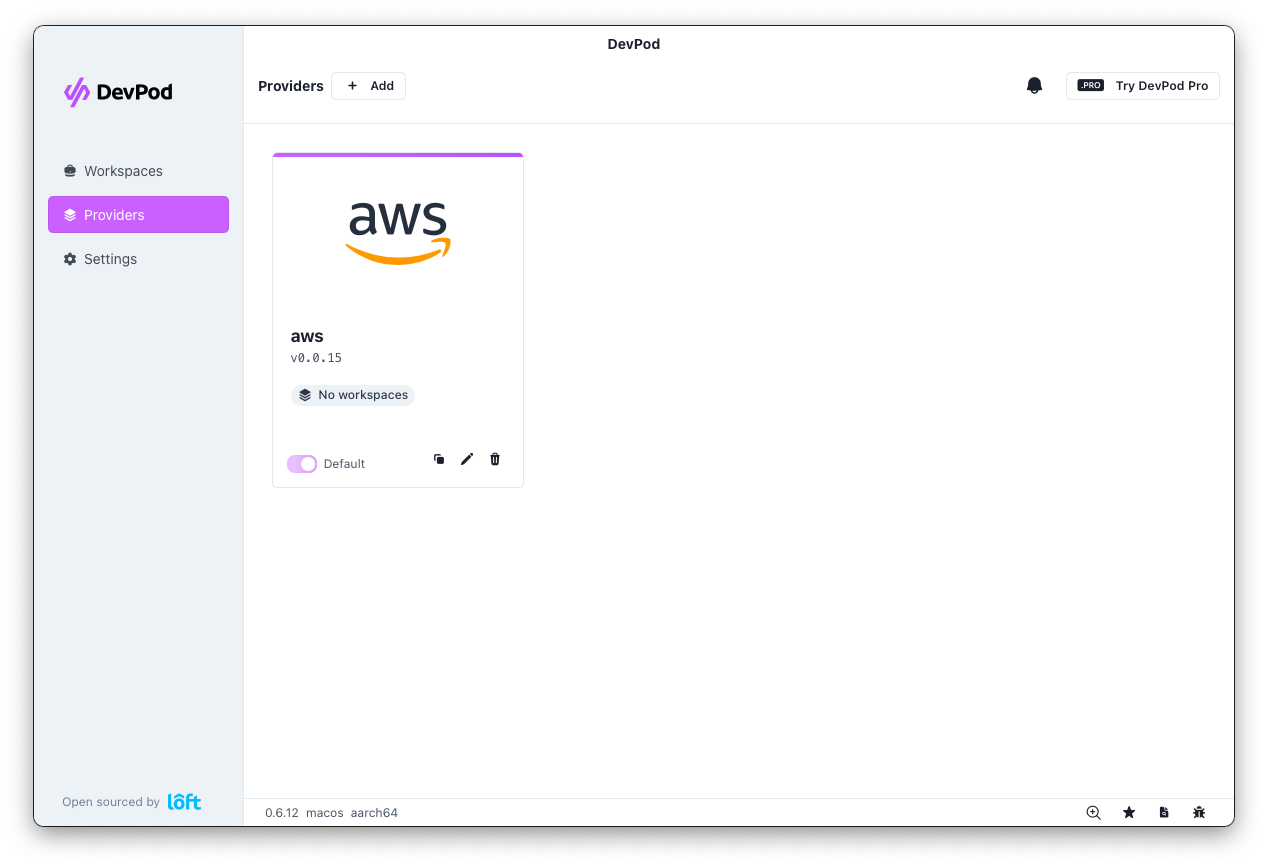

Click Add Provider.

Testing a deployment 🧪

Deploy

Let's do a quick test using one of the pre-built Docker images:

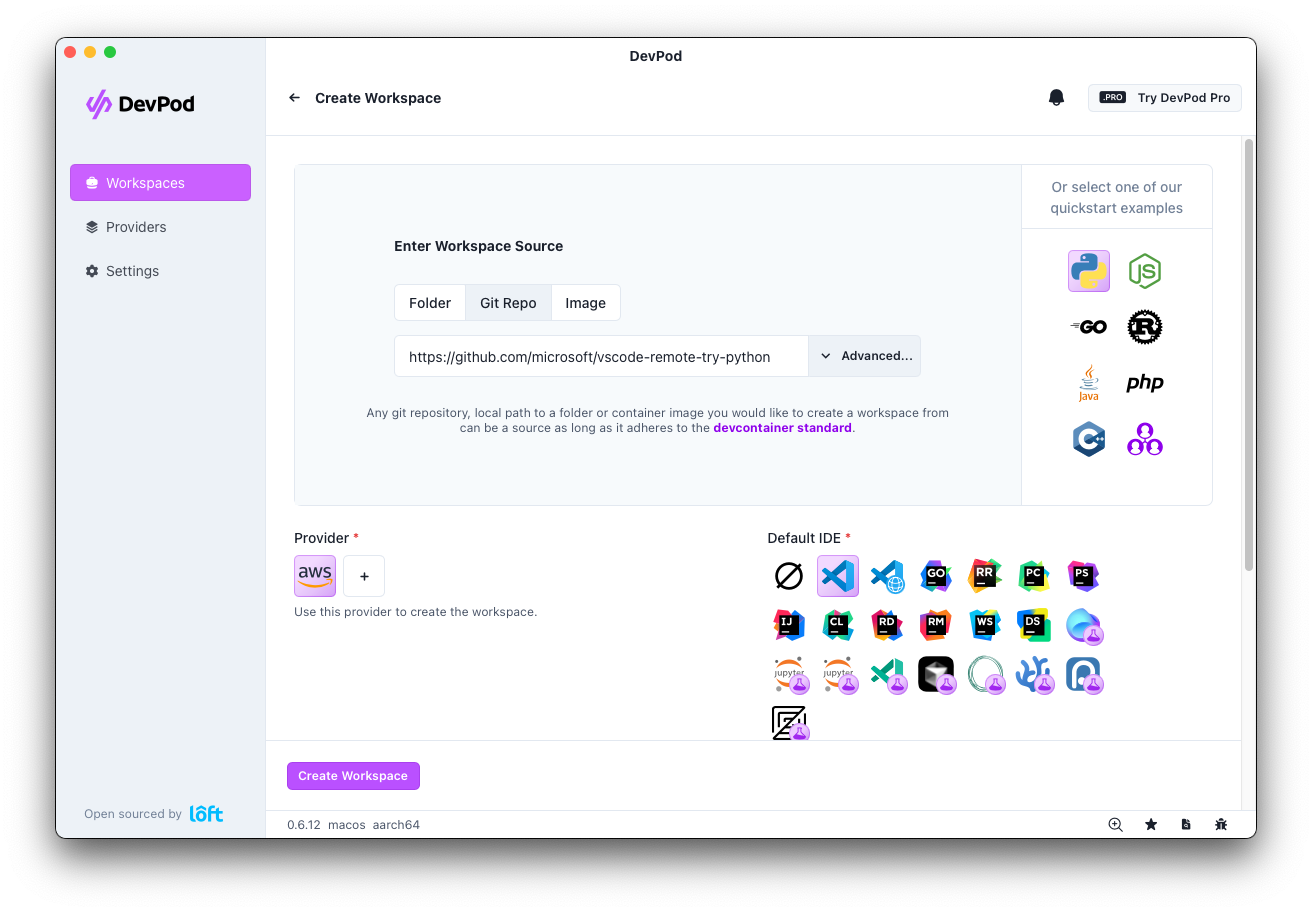

1. Go to Workspaces in DevPod.
2. Click Create Workspace.
3. Choose your new AWS provider.
4. Choose your preferred IDE (VS Code, etc.).
5. On the right, select a quick-start example (e.g., Python). 🐍
6. Click Create Workspace.

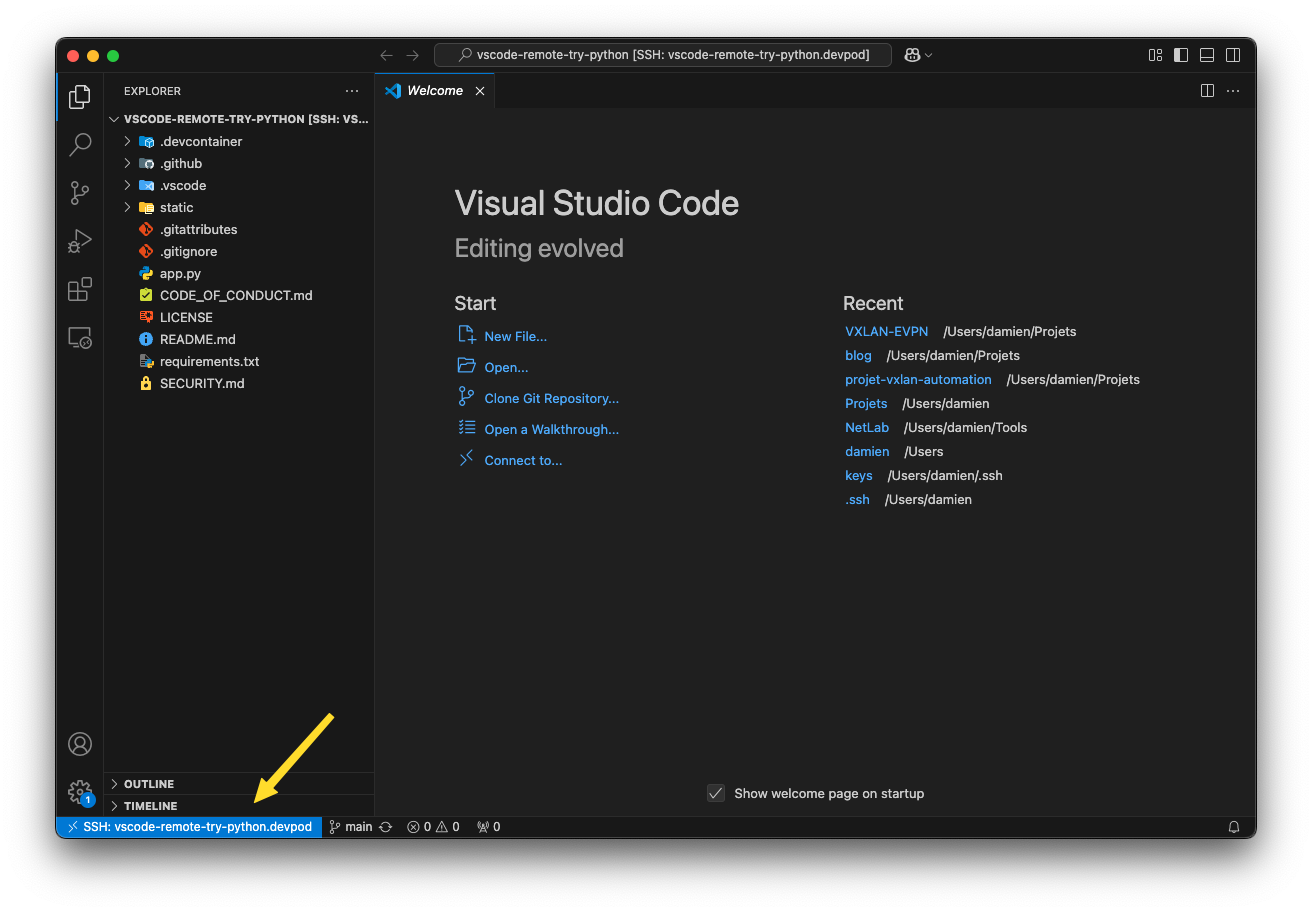

Wait a few moments, and your cloud-based environment will pop up in VS Code. 🎊

Stop

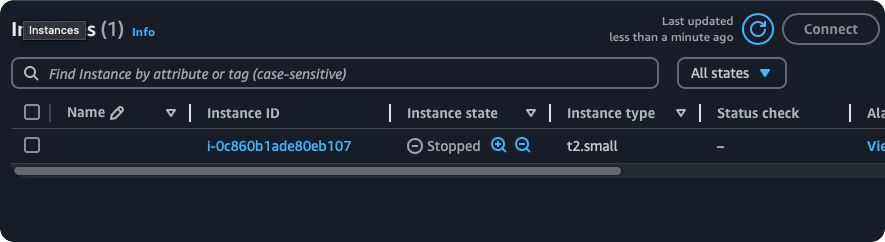

When you're not using the environment, click Stop to shut down the EC2 instance. You'll only pay for storage — no compute time. Great for your wallet. 💰

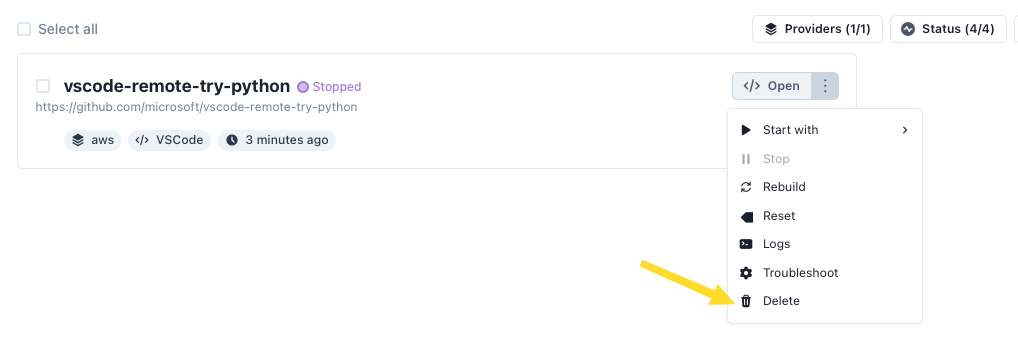

Delete

Deleting the workspace removes all AWS resources associated with that environment, so you won't pay a dime. But you'll need to redeploy if you want to use it again. ♻️

Conclusion 💡

By combining DevContainers and DevPod on AWS, you can build flexible, self-managed development environments that scale with your needs — without being locked into vendor-specific platforms. Say goodbye to "It works on my machine!" issues and hello to frictionless coding. 🚀✨

Have fun! 🎉
